Regular maintenance of a single phase screw air compressor is crucial to ensure its optimal performance and longevity. One of the most important maintenance tasks is cleaning the filters. In this blog, as a single phase screw air compressor supplier, I'll guide you through the process of cleaning the filters of a single phase screw air compressor.
Understanding the Importance of Filter Cleaning
Filters in a single phase screw air compressor play a vital role in protecting the compressor and the end - use equipment. The air intake filter prevents dust, dirt, and other contaminants from entering the compressor. If the air intake filter is clogged, it restricts the airflow, which can lead to increased energy consumption, reduced compressor efficiency, and potential damage to the compressor components.
The oil filter, on the other hand, is responsible for removing impurities from the lubricating oil. Clean oil is essential for proper lubrication of the compressor's moving parts, reducing friction and wear, and preventing overheating. A dirty oil filter can cause poor oil circulation, leading to premature component failure.
Tools and Materials Needed
Before you start cleaning the filters, gather the necessary tools and materials. You will need:
- Safety goggles and gloves
- A clean, dry cloth
- Compressed air source (optional)
- Mild detergent (for oil filter cleaning)
- A container for soaking the oil filter
- Replacement filters (if the existing ones are too damaged to clean)
Step - by - Step Guide to Cleaning the Air Intake Filter
- Shut down the compressor: Always ensure that the single phase screw air compressor is turned off and unplugged before starting any maintenance work. This is a basic safety precaution to prevent any accidental start - up.
- Locate the air intake filter: The air intake filter is usually located on the outside of the compressor. It may be housed in a filter housing or a protective cover. Remove the housing or cover to access the filter.

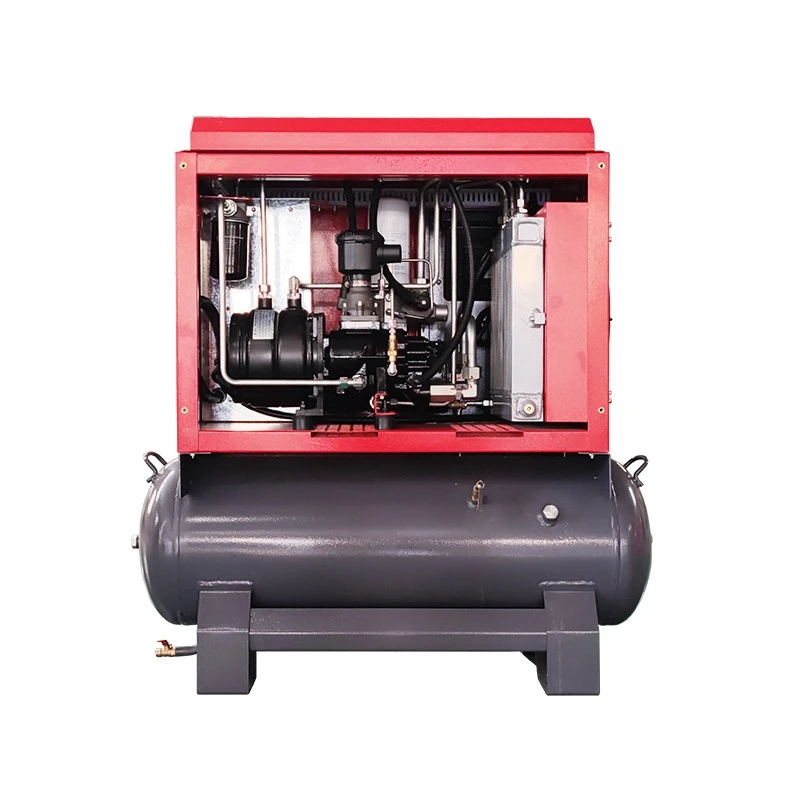

- Inspect the filter: Carefully examine the air intake filter for signs of damage, such as tears or excessive dirt buildup. If the filter is severely damaged, it is recommended to replace it with a new one. You can find suitable replacement filters for our 7.5KW Single Phase Screw Air Compressor, 4.5KW Single Phase Screw Air Compressor, and 5.5KW Single Phase Rotary Screw Air Compressor from our official website.
- Clean the filter: If the filter is only moderately dirty, you can clean it using a compressed air source. Hold the filter firmly and blow compressed air through it in the opposite direction of the normal airflow. This will dislodge the dirt and debris. If you don't have a compressed air source, you can gently tap the filter on a hard surface to remove the loose dirt. Then, use a clean, dry cloth to wipe the filter.
- Reinstall the filter: Once the filter is clean, carefully place it back into the filter housing or cover. Make sure it is properly seated and secured.
Cleaning the Oil Filter
- Drain the oil: Before cleaning the oil filter, you need to drain the oil from the compressor. Locate the oil drain valve and place a suitable container beneath it. Open the valve and allow the oil to drain completely.
- Remove the oil filter: Use an oil filter wrench to loosen and remove the oil filter from the compressor. Be careful as the filter may still contain some oil.
- Inspect the oil filter: Check the oil filter for any signs of damage or excessive dirt. If the filter is clogged or damaged, it is best to replace it with a new one.
- Clean the oil filter (if possible): Some oil filters can be cleaned. If your oil filter is of a cleanable type, soak it in a container filled with a mild detergent solution. Let it soak for a few hours to loosen the dirt and contaminants. Then, rinse the filter thoroughly with clean water. Make sure to remove all traces of the detergent.
- Dry the oil filter: After rinsing, allow the oil filter to dry completely. You can use a clean, dry cloth to pat it dry or let it air - dry.
- Reinstall the oil filter: Once the oil filter is dry, apply a thin layer of clean oil to the rubber gasket on the filter. Then, install the filter back onto the compressor and tighten it using the oil filter wrench.
- Refill the oil: After reinstalling the oil filter, refill the compressor with the appropriate type and amount of oil. Refer to the compressor's manual for the correct oil specifications.
Frequency of Filter Cleaning
The frequency of filter cleaning depends on several factors, such as the operating environment, the amount of dust and dirt in the air, and the usage of the compressor. In general, it is recommended to clean the air intake filter every 100 - 200 operating hours and the oil filter every 500 - 1000 operating hours. However, if the compressor is operating in a particularly dirty environment, you may need to clean the filters more frequently.
Tips for Maintaining Clean Filters
- Keep the compressor area clean: Try to keep the area around the compressor free from dust, dirt, and debris. This will reduce the amount of contaminants that the filters have to deal with.
- Use high - quality filters: Always use high - quality filters that are specifically designed for your single phase screw air compressor. This will ensure better filtration and longer filter life.
- Follow the manufacturer's guidelines: Refer to the compressor's manual for specific maintenance instructions and recommendations. The manufacturer's guidelines are based on the design and specifications of the compressor and will help you maintain it properly.
Conclusion
Cleaning the filters of a single phase screw air compressor is a relatively simple but essential maintenance task. By following the steps outlined in this blog, you can ensure that your compressor operates efficiently and has a longer service life. Regular filter cleaning not only improves the performance of the compressor but also reduces the risk of costly repairs and downtime.
If you are in the market for a single phase screw air compressor or need more information about filter maintenance and replacement, feel free to contact us for procurement and further discussion. Our team of experts is always ready to assist you.
