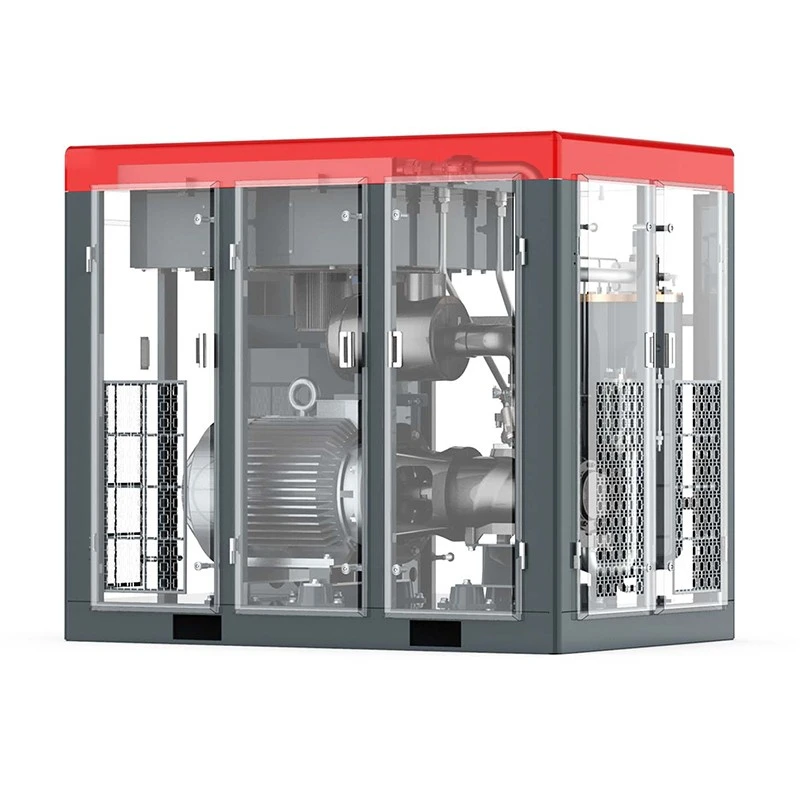

75kw Rotary Screw Air Compressor



75kw rotary screw air compressor, with a powerful core, stable output and ultimate performance, to help your industrial production.



Product Name	Rotary screw air compressor, Fixed Speed Screw Air compressor
Gas Type	Air
Power	75kw
Air outlet diameter	DN20 – DN65
Driven method	Direct driven
Configuration	Stationary
Lubrication Style	Lubricated
Weight	213-4600kg
Warranty	2 years
Certification	CE/ASME/ISO
Color	Optional&Customization
Local Service Location	Philippines, Mexico, Russia





The radiator has passed the strict factory test, and the quality is reliable, which effectively prevents the high temperature of the air compressor and increases the service life of the machine.

Large memory and equipped with printer interface; It can use computer remote monitoring or multiple linkage control between air compressors.

The fan motor adopts special winding and high protection grade design to adapt to harsh working conditions.

Protection grade IP55, insulation grade F, effectively protects the motor and increases the service life of the motor, the efficiency is 5%-7% higher than similar products.

The intake valve is the core component to control the air intake of the air compressor.

The high-quality air-oil separation element and gas-liquid filter element are equipped with advanced three-stage air-oil separation to keep the oil content below 3ppm to ensure the output of high-quality compressed air.

Adopts the international top-level third-generation asymmetric wire twin-screw air end, adheres to the exquisite manufacturing process, adopts the peak high efficiency low-pressure, high-efficiency tooth shape and the axial air inlet design.

Large memory and equipped with printer interface; It can use computer remote monitoring or multiple linkage control between air compressors.
