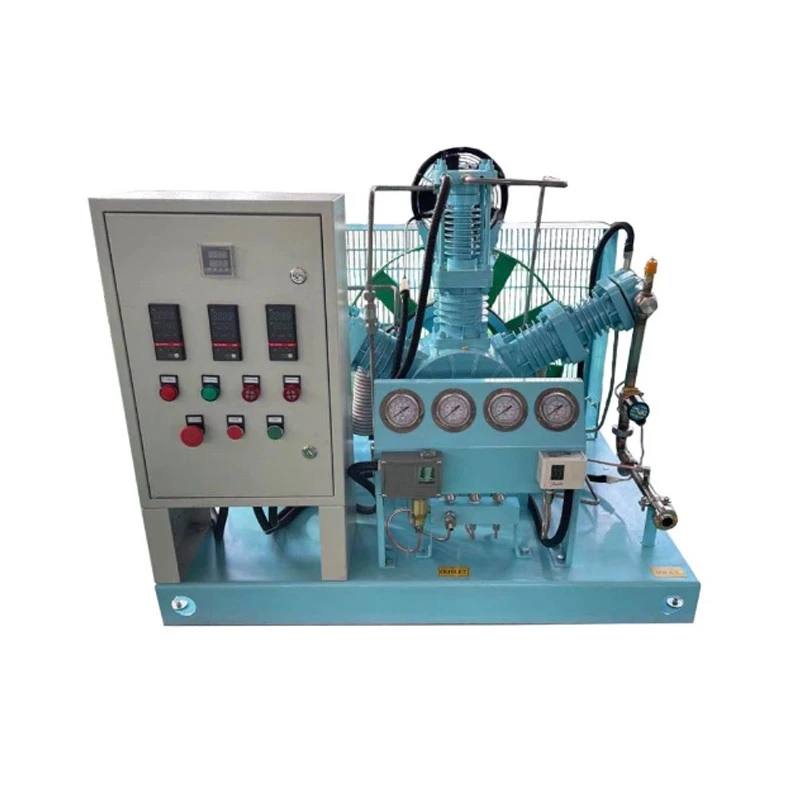

Oxygen Compressor

Oil-free oxygen piston compressors are pollution-free and low-noise, and are widely used in medical, laboratory and industrial oxygen supply systems.

We offer the most economical, efficient, and safe solution for customized OIL-FREE OXYGEN PISTON COMPRESSOR systems.

• Volume flow: 3NM3/hour~150NM3/hour (customized)
• Voltage: 380V/50Hz (customized)
• Maximum outlet pressure: 100MPa (customized)
• Motor power: 2.2KW~30KW (customized)
• Noise: <80dB
• Crankshaft speed: 350~420 rpm/min

The oil-free oxygen compressor features a fully oil-free design, incorporating specially crafted friction seals like piston rings and guide rings made from self-lubricating materials. Employing a four-stage compression process, water-cooled cooling method, and a stainless steel water cooler ensures optimal cooling, effectively prolonging the service life of crucial wearing components. The intake port is equipped with a low intake pressure, and the exhaust end features an exhaust device. Each level is equipped with high-pressure protection, high exhaust temperature protection, a safety valve, and a temperature display. In case of excessive temperature or overpressure, the system triggers an alarm and stops to guarantee safe operation.

Our product holds a CE certificate, and we offer customized oxygen compressors tailored to customer requirements.

• The entire compression system operates without thin oil lubrication, eliminating the risk of oil coming into contact with high-pressure and high-purity oxygen, ensuring machine safety.
• The absence of a lubrication and oil distribution system simplifies the machine structure, facilitates control, and streamlines operation.
• With an entirely oil-free system, the compressed oxygen remains uncontaminated, maintaining consistent oxygen purity at both the inlet and outlet of the compressor.
• Offering a low purchase cost, minimal maintenance expenses, and straightforward operation.
• Capable of running continuously for 24 hours without shutdown (depending on the specific model).
