Hey there! As a supplier of single phase screw air compressors, I'm super stoked to chat with you about one of the key components in these machines: the pressure switch. You might be wondering, "What on earth does a pressure switch do in a single phase screw air compressor?" Well, stick around, and I'll break it down for you.
What's a Pressure Switch Anyway?
First off, let's get a basic understanding of what a pressure switch is. It's a simple yet crucial device that monitors the air pressure inside the compressor's tank. Think of it as the traffic cop of your air compressor, controlling when the compressor starts and stops based on the pressure levels.
The Main Function: Pressure Regulation
The primary function of the pressure switch in a single phase screw air compressor is to regulate the air pressure. When you turn on the compressor, it starts pumping air into the tank. As the air builds up, the pressure inside the tank increases. The pressure switch keeps an eye on this pressure.
Once the pressure reaches a pre - set upper limit (also known as the cut - out pressure), the pressure switch kicks in and stops the compressor motor. This is important because it prevents the tank from over - pressurizing, which could be dangerous. You wouldn't want your compressor tank to turn into a mini - bomb, right?
On the flip side, when you start using the compressed air (for example, if you're using it to power a pneumatic tool), the pressure in the tank starts to drop. When the pressure hits a pre - set lower limit (the cut - in pressure), the pressure switch tells the compressor motor to start up again. This way, the compressor maintains a consistent air pressure within a safe and useful range.
Protecting the Compressor
Another vital function of the pressure switch is to protect the compressor motor. Running the motor continuously can cause it to overheat and wear out quickly. By automatically starting and stopping the motor based on the pressure, the pressure switch helps to extend the lifespan of the motor. It gives the motor a break when it doesn't need to be running, which reduces energy consumption and saves you money in the long run.
Safety First
Safety is always a top priority when it comes to operating machinery, and the pressure switch plays a big role in keeping your single phase screw air compressor safe. If the pressure switch malfunctions and fails to stop the compressor at the cut - out pressure, the tank could over - pressurize. This could lead to a rupture of the tank, which is extremely dangerous.
Most pressure switches are designed with safety features. For example, they often have a manual override that allows you to turn off the compressor in case of an emergency. Some also have built - in pressure relief valves that open if the pressure gets too high, releasing the excess air and preventing a potential explosion.
Types of Pressure Switches
There are different types of pressure switches used in single phase screw air compressors. The most common ones are electromechanical pressure switches and electronic pressure switches.
Electromechanical pressure switches are the traditional type. They use a mechanical diaphragm or piston to sense the pressure. When the pressure changes, it moves the diaphragm or piston, which in turn activates a set of electrical contacts. These contacts then control the compressor motor. Electromechanical pressure switches are reliable and relatively inexpensive, but they may not be as accurate as electronic ones.
Electronic pressure switches, on the other hand, use sensors to measure the pressure. They offer more precise control and can be programmed to have different cut - in and cut - out pressures. They also tend to have a longer lifespan and are less prone to mechanical wear and tear. However, they are usually more expensive than electromechanical pressure switches.
Our Single Phase Screw Air Compressors
At our company, we offer a range of high - quality single phase screw air compressors, each equipped with a reliable pressure switch. For example, our 7.5KW Single Phase Screw Air Compressor is a great choice for small to medium - sized businesses. It has a powerful motor and a well - designed pressure switch that ensures stable air pressure and long - term performance.

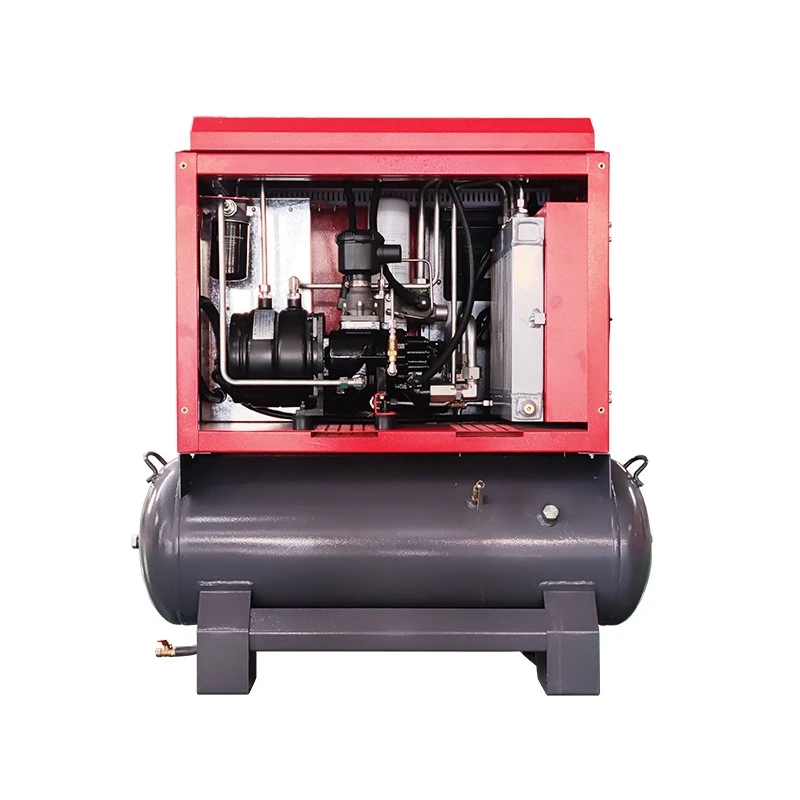

If you're looking for something more compact, our Single Phase Air Compressor is a fantastic option. It's perfect for home workshops or small - scale industrial applications. And for those who need a bit more power, our 9KW Single Phase Rotary Screw Air Compressor is up to the task.
Maintaining the Pressure Switch
To keep your single phase screw air compressor running smoothly, it's important to maintain the pressure switch. Regularly check the switch for any signs of damage or wear. Make sure the electrical connections are tight and free of corrosion. You should also clean the switch periodically to remove any dirt or debris that could affect its performance.
If you notice any problems with the pressure switch, such as inconsistent pressure control or the compressor not starting or stopping correctly, it's best to have it checked by a professional. A faulty pressure switch can lead to serious problems, so it's better to address the issue as soon as possible.
Conclusion
In conclusion, the pressure switch is a vital component in a single phase screw air compressor. It regulates the air pressure, protects the compressor motor, and ensures the safety of the entire system. Whether you're a DIY enthusiast or a business owner, understanding the function of the pressure switch can help you get the most out of your air compressor.
If you're in the market for a single phase screw air compressor or need more information about our products, don't hesitate to reach out. We're here to help you find the perfect compressor for your needs and answer any questions you might have. Let's start a conversation and see how we can work together to meet your compressed air requirements.
References
- Compressed Air Systems Handbook
- Principles of Air Compressor Operation
